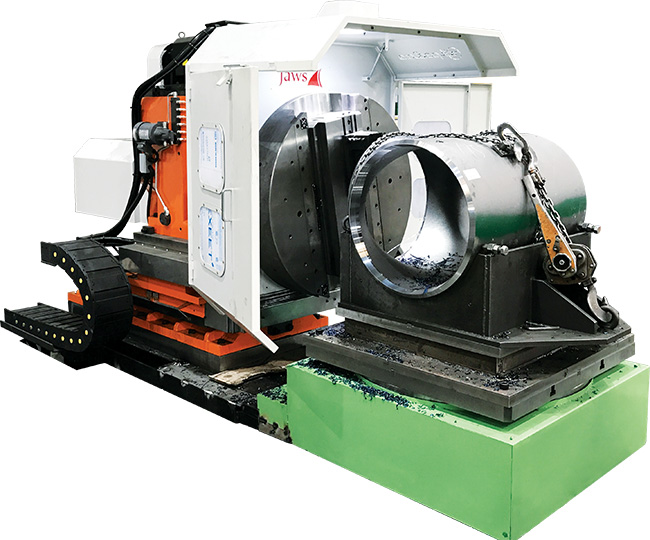

Tube 900E
Elbow / Tee Facing Machine / Fanuc Program
| Category | Unit | Specification | |
|---|---|---|---|
| Diameter | 16˝ ~ 64˝ | ||
| Thickness | ㎜ | Max. 120 | |
| Spindle RPM | 50 | ||
| Spindle Motor | ㎾ | 22 | |
| Z-axis Motor | ㎾ | 3.5 | |
| X-axis Motor | ㎾ | 3.5 | |
| Y-axis Motor | ㎾ | 2.5 | |
| U-axis Motor | ㎾ | 2.5 | |
| Hydraulic Motor | ㎾ | 2.2 | |
| Table Loading Weight | Ton | Max. 4 | |
| Control | Fanuc CNC Program | ||
| Dimension | L × W × H | ㎜ | 4,000 × 1,700 × 2,600 |
| Weight | 9,500 | ||
