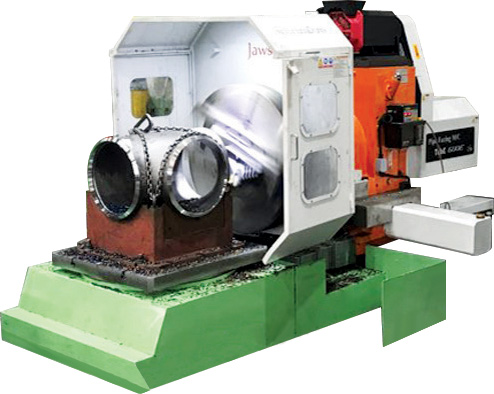

Tube 600E
Elbow / Tee Facing Machine / Fanuc Program
| Category | Unit | Specification | |
|---|---|---|---|
| Diameter | Max. 24˝ | ||
| Thickness | ㎜ | Max. 100 | |
| Spindle RPM | 150 | ||
| Spindle Motor | ㎾ | 22 | |
| Z-axis Motor | ㎾ | 3.5 | |
| X-axis Motor | ㎾ | 3.5 | |
| Y-axis Motor | ㎾ | 2.5 | |
| U-axis Motor | ㎾ | 2.5 | |
| Hydraulic Motor | ㎾ | 2.2 | |
| Table Loading Weight | Ton | Max. 2.4 | |
| Control | Fanuc CNC Program | ||
| Dimension | L × W × H | ㎜ | 3,650 × 1,500 × 2,550 |
| Weight | 8,500 | ||
