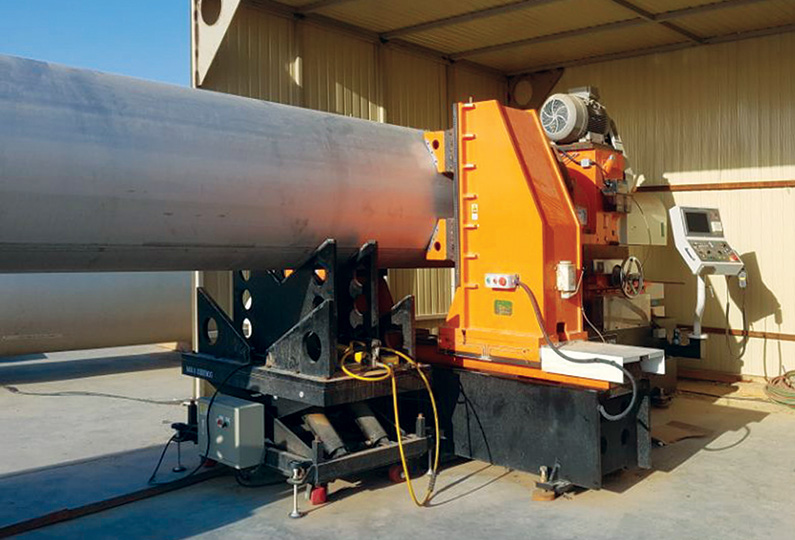

Tube 1600K(F)
Automatic Pipe Beveling Machine / KD or Fanuc Program
| Category | Specification | |
|---|---|---|
| Diameter | 16˝ ~ 64˝ | |
| Thickness | Max. 120㎜ | |
| Spindle RPM | 120 | |
| Spindle Motor | 22㎾ | |
| Z-axis Motor | 5.5㎾ | |
| X-axis Motor | 3.5㎾ | |
| Vise Motor | 3.75㎾ | |
| Control | 1600K | KD NC Program |
| 1600F | Fanuc CNC Program | |
| Dimension | L × W × H | 3,500 × 4,200 × 2,900㎜ |
| Weight | 16,500 | |
