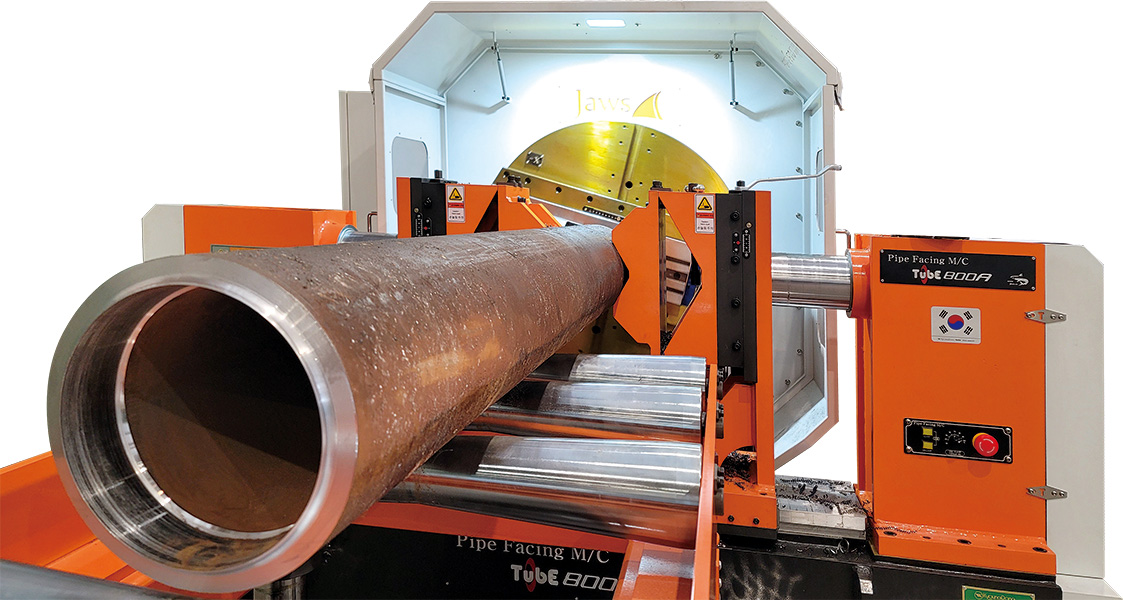

Tube 800K(F)
Automatic Pipe Beveling Machine / KD or Fanuc Program
| Category | Specification | |
|---|---|---|
| Diameter | 6˝ ~ 32˝ | |
| Thickness | Max. 100㎜ | |
| Spindle RPM | 150 | |
| Spindle Motor | 7.5㎾ | |
| Z-axis Motor | 3.5㎾ | |
| X-axis Motor | 1.5㎾ | |
| Vise Motor | 2.2㎾ | |
| Control | 800K | KD NC Program |
| 800F | Fanuc CNC Program | |
| Dimension | L × W × H | 2,350 × 2,350 × 2,000㎜ |
| Weight | 5,800 | |
