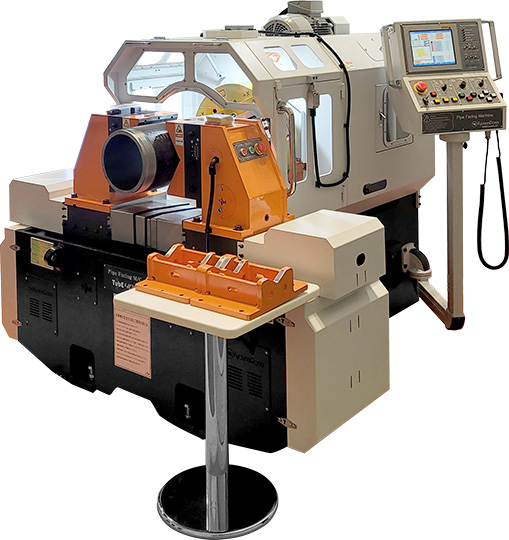

Tube 400K(F)
Automatic Pipe Beveling Machine / KD or Fanuc Program
| Category | Specification | |
|---|---|---|
| Diameter | 3˝ ~ 16˝ | |
| Thickness | Max. 40㎜ | |
| Spindle RPM | 200 | |
| Spindle Motor | 5.5㎾ | |
| Z-axis Motor | 2.2㎾ | |
| X-axis Motor | 1.5㎾ | |
| Vise Motor | 1.5㎾ | |
| Control | 400K | KD NC Program |
| 400F | Fanuc CNC Program | |
| Dimension | L × W × H | 2,300 × 1,950 × 1,650㎜ |
| Weight | 3,500 | |
